High Conductivity MoCu Molybdenum Copper Alloy ASTM B387

Name: High Conductivity MoCu Molybdenum Copper Alloy ASTM B387
Brand: JINXING
Price: 1 USD

Wholesale High Conductivity MoCu Molybdenum Copper Alloy ASTM B387 from china suppliers

Brand Name : JINXING

Model Number : Molybdenum Copper Alloy

Certification : ISO 9001

Place of Origin : China

MOQ : 1kg

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000kgs/M

Delivery Time : 25 work days

Packaging Details : Plywood Case

Material : Molybdenum Copper Alloy

Standard : ASTM B387

Min THK : 0.05mm

Surface : Mirror bright

Melting Point : 2623 °C

Boiling Point : 4639 °C

Size : Customized

Technique : Hot Rolling, Cold Rolling

Contact Now

High Conductivity MoCu Molybdenum Copper Alloy Sheet Bar Rod Material

Molybdenum Copper is alloy of molybdenum and copper. It is a great alternative to tungsten copper for weight sensitive applications. The combination of high purity raw material and high temperature hydrogen sintering using no additives yields the highest thermal conductivity available for this composite material system.

Molybdenum Copper composite material are produced by copper infiltration of sintered molybdenum. They are available with different copper contents (15-50%).

Molybdenum Copper Alloy Sheet Bar Grade

Material	Wt%	Wt%	g/cm3	Thermal conductivity at 25℃	Coefficient of thermal
Mo85Cu15	Mo	Cu	Density at 20℃	160 - 180	expansion at 20℃
Mo80Cu20	85± 1	Balance	10	170 - 190	6.8
Mo70Cu30	80 ± 1	Balance	9.9	180 - 200	7.7
Mo60Cu40	70 ± 1	Balance	9.8	210 - 250	9.1
Mo50Cu50	60 ± 1	Balance	9.66	230 - 270	10.3

Molybdenum alloy rod has ranged a lot for different adding elements. Lanthanum molybdenum alloy is with lanthanum as adding element, rhenium molybdenum alloy is with rhenium, copper molybdenum alloy is with copper and these ones are called two elemental molybdenum alloy. If adding more elements, then composite molybdenum ally is manufactured out. And three elemental ones are mostly popular, such as TZM (titanium zirconium molybdenum) alloy with titanium zirconium and MHC (molybdenum hafnium carbon) with hafnium and carbon.

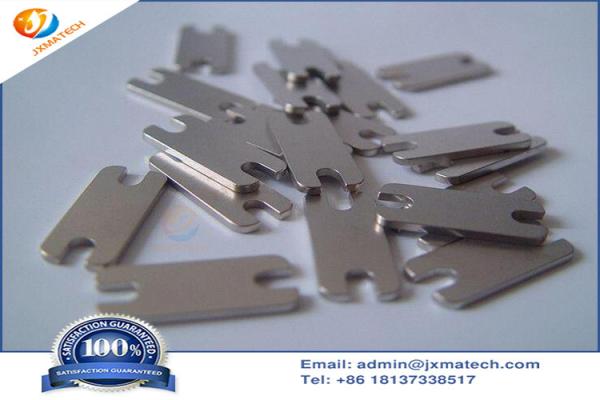

Molybdenum Copper Alloy Sheet Picture:

High Conductivity MoCu Molybdenum Copper Alloy ASTM B387
