0.1mm Polished Forged Zirconium 702 Welding Wire For Tanks

  • 1
  • 2
  • 3

Brand Name : JINXING

Model Number : Zirconium Wire

Certification : ISO 9001

Place of Origin : China

MOQ : 1kg

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000kgs/M

Delivery Time : 10~25 work days

Packaging Details : Plywood case

Material : Zr 702 , Zr 704 , Zr 705

Standard : ASTM B550

Process : Forge, Drawing

Surface : Black, Polished

Density : 6.51g/cm3

Size : min0.1mm

Contact Now

Zirconium Welding Wire Zirconium (Zr) 702 Welding Wire (Zr Wire) Zirconium Wire Zirconium Alloy Wire

​Applications: Zirconium Zr 702 is used widely in many industries for process equipment. Major applications include pressure vessels, heat exchangers, piping, tanks, shafts, mixers, and other mechanical equipment; valves; pumps; spargers; trays; and tower packing

The following properties distinguish Zirconium Welding Wire

· relatively good softness and flexibility;

· good workmanship;

· Resistance to almost all acids and alkalis;

· extreme corrosion resistance;

· excellent high temperature properties;

· sufficient strength.

Chemical compositions for Zirconium Welding Wire

Grade Zr+Hf Hf Fe+Cr Sn H N C O Nb
R60702/ERZr2 99.2% <4.5% <0.20% - <0.005% <0.015% <0.030% <0.15% -
R60704/ERZr3 97.5% <4.5% 0.2-0.4% 1.0-2.0% <0.005% <0.015% <0.030% <0.16% -
R60705/ERZr4 95.5% <4.5% <0.2% - <0.005% <0.015% <0.050% <0.16% 2.0-3.0%

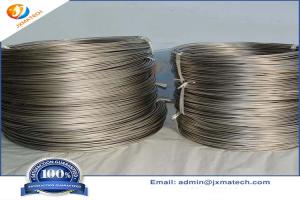

Zirconium Welding Wire Picture:

0.1mm Polished Forged Zirconium 702 Welding Wire For Tanks0.1mm Polished Forged Zirconium 702 Welding Wire For Tanks

0.1mm Polished Forged Zirconium 702 Welding Wire For Tanks
