Factory Free sample Aluminium Sputtering Target Price - TiAl target ALTi2021 new price
TiAl target ALTi2021 new price with high quality
Detail:
Product Specifications
arc Dia100*40mm
rectangle/planar L4000mm*W400mm*T40mm,with hole or step
cylinder: rotary target L3987*ID125*OD159mm,L3191*ID125*OD159mm
Bonding on copper backing plate
powder,granule
customized by drawing
Logistics Information
vacuum PVC bag for each pice,PE and fumigation wood box package.
Application
1:The flat panel Display coating industry
2: Tools&Decoration Coating industry
3: Architectural glass / automotive glass industry
4:Optical data /Magnetic data storage industry
5:Optical communication industry
6:Solar PV and Heating industry
TiAl Target Description
| Purity | Al-Ti (35/65at%), Al/Ti (50:50 at%),AlTi 97/3wt%, AiTi 95/5wt%, AlTi 90/10wt% |
| Shape | Discs, Plate, Step (Dia ≤300mm, Thickness ≥1mm)
Rectangle, Sheet, Step (Length ≤1000mm, Width ≤300mm, Thickness ≥1mm)
Tube( Diameter< 300mm, Thickness >2mm |
| Certification | ISO 9001:2008 |
| Specification | Customized as request |
| Process | Forged , Rolling , Grinding |
| Application | 1. Electroplating; 2. Chemical engineering & Petrochemical technology; 3. Medical |
| Density/Orgin country | 4.51g/cm3 /Henan province |

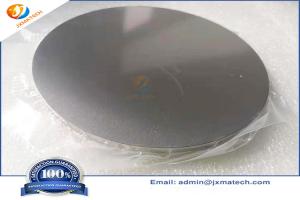

TiAl Target Picture:
| High pure metal sputtering target |
| Aluminum | Al | pellet,round,planar,rotatable target | 3N~6N |
| Chronium | Cr | 2N~3N5 |
| Platinum | Pt | 4N~5N |
| Nickel | Ni | 4N~5N |
| Cobalt | Co | 3N~4N |
| Zirconium | Zr | 2N2~4N |
| Titanium | Ti | 4N~5N |
| Copper | Cu | 4N~5N |
| Molybdenum | Mo | 3N~4N |
| Niobium | Nb | 3N5 |
| Tatalum | Ta | 4N5 |
| Tungsten | W | 3N5 |
| Hafnium | Hf | 3N |
| Vanadium | V | 2N5~3N |
Hot Tags: tial round tial titanium-alunium target used in functional films, China, manufacturers, suppliers, factory, company, wholesale, products
| Titanium Aluminum Alloy target/Ti-Al target Ti: Al 33:67% |
| Ti | Al | Fe | Si | Mg | Cl | C | Mn | O | N |
| 46.30 | 53.20 | 0.075 | 0.066 | 0.030 | 0.013 | 0.016 | 0.008 | 0.095 | 0.003 |
Product Tags:
|
|
ALTi202 TiAl Target Vacuum Melting For Decoration Coating Images
|
