UNS R60702 Zr702 Zirconium Pipe ASME SB-658 For Manufacturing Chemical Equipment

Name: UNS R60702 Zr702 Zirconium Pipe ASME SB658 For Manufacturing Chemical Equipment
Brand: JINXING Zirconium Zr702 pipe
Price: 1 USD

Wholesale UNS R60702 Zr702 Zirconium Pipe ASME SB-658 For Manufacturing Chemical Equipment from china suppliers

Brand Name : JINXING Zirconium Zr702 pipe

Model Number : Zr702

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 kg

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 2000 kg per month

Delivery Time : 10-15 days

Packaging Details : plywood cases

Product : Zirconium Zr702 pipe

Grade : Zr-702

Standard : ASME B523

Density : 6.51 g/cc

Tensile Strength : >215 MPa

Elongation : >17%

UNS : R60702

Applications : heat exchanger

Contact Now

UNS R60702 Zirconium Zr702 Pipe ASME SB-658 For Manufacturing Chemical Equipment

Zirconium Zr702 Pipe is a kind of rare metal, with amazing corrosion resistance, high melting point, super hardness and strength. Zirconium pipe 702 is widely used in aerospace, military industry, nuclear reaction and atomic energy. General industrial zirconium is mainly used in chemical and electronic industry, mainly used in the corrosion resistance and conductivity of zirconium pipe.

CHEMICAL COMPOSITIONS (NOMINAL)

Type	Zr+Hf	Hf	Fe+Cr	H	N	C	O	Nb
Zr702	>99.2	<4.5	<0.2	<0.005	<0.025	<0.05	<0.16	/
Zr705	95.5	<4.5	<0.2	<0.005	<0.025	<0.05	<0.18	2.0-3.0

PHYSICAL PROPERTIES

Density: 6.51 g/cc
Melting Point: 1852°C
Thermal conductivity: 22 W/(m °C)
Elastic bending modulus: 99.31GPa
Thermal Expansions: 5.4x10 /°C

Zirconium Zr702 Pipe SPECIFICATION

The dimensional accuracy and surface quality of the pipe are required to be high. Therefore, the process equipment should have good precision, and the design and manufacture of the die should be advanced and reasonable.

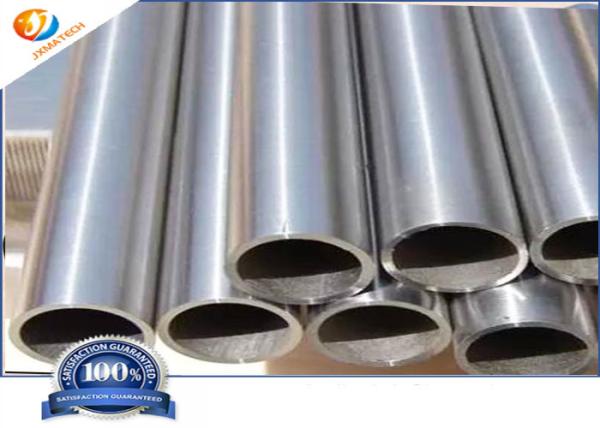

Zirconium Zr702 Pipe Picture:

UNS R60702 Zr702 Zirconium Pipe ASME SB-658 For Manufacturing Chemical Equipment

Processing

The processing specification has a sensitive influence on the performance of the product. In particular, the cold processing and heat treatment process before the finished product should be controlled to meet the requirements of use.
