High temperature TZM plates

Brand Name : JX

Model Number : High temperature TZM plates

Certification : ISO

Place of Origin : China

MOQ : 10kgs

Price : according to actual products

Payment Terms : T/T

Supply Ability : 300kgs month

Delivery Time : 25days

Packaging Details : standard packing

size : as request

Quality : ISO9001:2008

Surface : polishing,burnishing,black surface

delivery time : 25days

packing : standard exporting

Name : High temperature TZM platesHigh temperature TZM plates

Contact Now

High temperature TZM plates

Tzm Plate is a particle-strengthened molybdenum-based alloy containing titanium, zirconium and carbon. TZC is an improved type of TZM with good heat treatment hardening effect.

Advantages of TZM compared to pure molybdenum:
Tensile strength above 1100°C is approximately twice that of unalloyed molybdenum
better creep resistance
higher recrystallization temperature
Better welding performance.
application:
TZM is widely used in aerospace, aviation and other industries. Can be used as nozzle material, valve body, gas pipeline material, gate material pipe, die casting mold, extrusion mold and high temperature furnace heating element and heat shield, etc.


Tzm Plate General Properties:
Density: 10.16 g/cc at 20°C
Recrystallization Temperature: 1425 to 1595°C
Stress-Relief Temperature: 1 hour at 1095 to 1260°C
Liquidus Temperature: 2620°C
Chemical Composition:
TZM: Mo + 0.40~0.55%Ti + 0.06~0.12%Zr + 0.01~0.04% C
TZC: Mo + 1.2% Ti + 0.3% Zr + 0.1% C

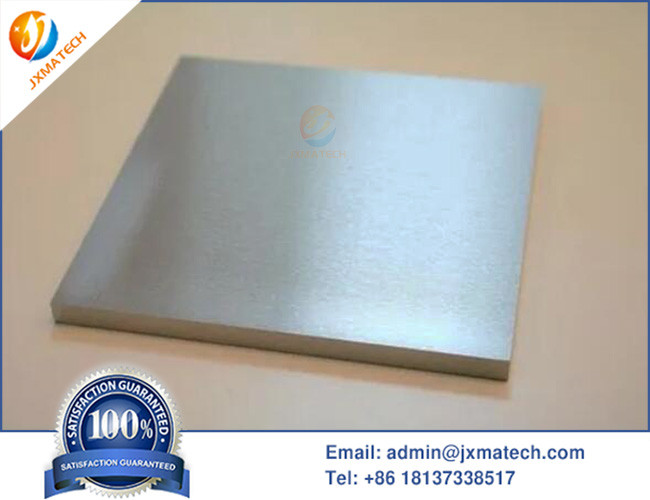

Tzm Plate Picture:
High temperature TZM platesHigh temperature TZM plates

Grade Chief constituent % The impurity content is not more than %
Mo Ti Zr C Al Ca Fe Mg Ni Si C N O
Mo1 - - - 0.002 0.002 0.010 0.002 0.005 0.01 0.01 0.003 0.008
Mo2 - - - 0.005 0.004 0.015 0.005 0.005 0.01 0.02 0.003 0.020
moTi0.5 0.4-
0.6		 - 0.01-
0.04		 0.002 - 0.010 0.002 - 0.01 - 0.001 0.003
TZM
ASTM
bal-anc-e		 0.4-
0.55		 0.06-
0.12		 0.01-
0.04		 0.002 0.002 0.01 0.001 0.005 0.005 - 0.002 0.05
